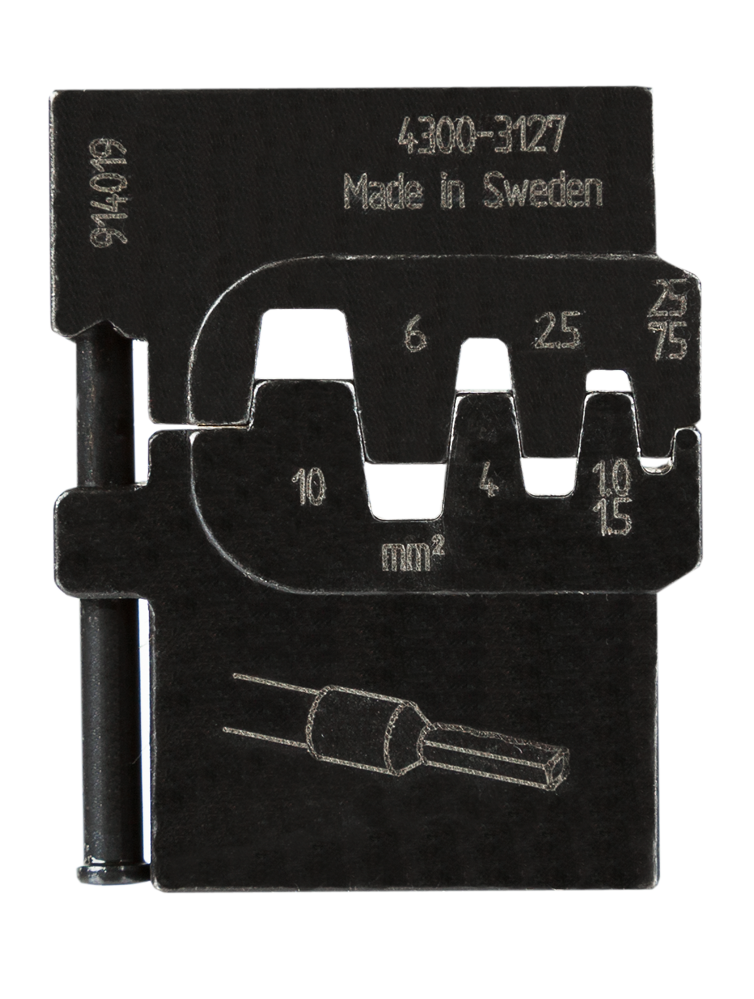

Pressmaster 4300-3127/AAA Mobile die set

Description Features & Benefits Reliable – crimping performance is consistent and accurate with a parallel action stroke Easy to use – designed to give the user full visibility of the crimping process. Handles are shaped for low effort crimping with a one or two hand grip Versatile – an easy-access release function allows fast and simple exchange of crimp dies. No special tools needed Weight and size of the tool are optimized to make it easy to carry. Dies are kept in pairs and delivered in a modular reusable box Comfortable – the entire tool frame is covered in smooth plastic for comfortable use, also for outdoor operations in all weather conditions Hole in handle allows attachment of safety strap. Technical Data Length 31 mm/1.22″ Width 12 mm/0.47″ Height 39 mm/1.54″ Weight 86 gr/0.19 lb Wire size 0.25-10 mm2 / AWG 24-8 Crimp dimensions mm/mm2 0.25 – 0.75 mm2/1.0 – 1.5 mm2/2.5 mm2/4 mm2/6 mm2/10 mm2 Crimp dimensions inch/AWG AWG 24 – AWG 20/AWG 18 – AWG 16/AWG 14/AWG 12/AWG 10/AWG 8 Connector Endsleeves Description For endsleve connectors, both uninsulated and insulated Life span, cycles 20,000
